HYF型系列化工液下泵是立式单级单吸离心泵。用于输送不含固体颗粒和不易结晶的有腐蚀性液体（特殊定制可输送微量结晶液体）。被输送介质温度-20℃～200℃。液下泵工作部分淹没在液体内，轴封无泄漏现象。且占地面积小，使用可靠，维修方便，耐腐蚀性能强等特点。广泛适用于化工、制药、造纸、石油等工业部门

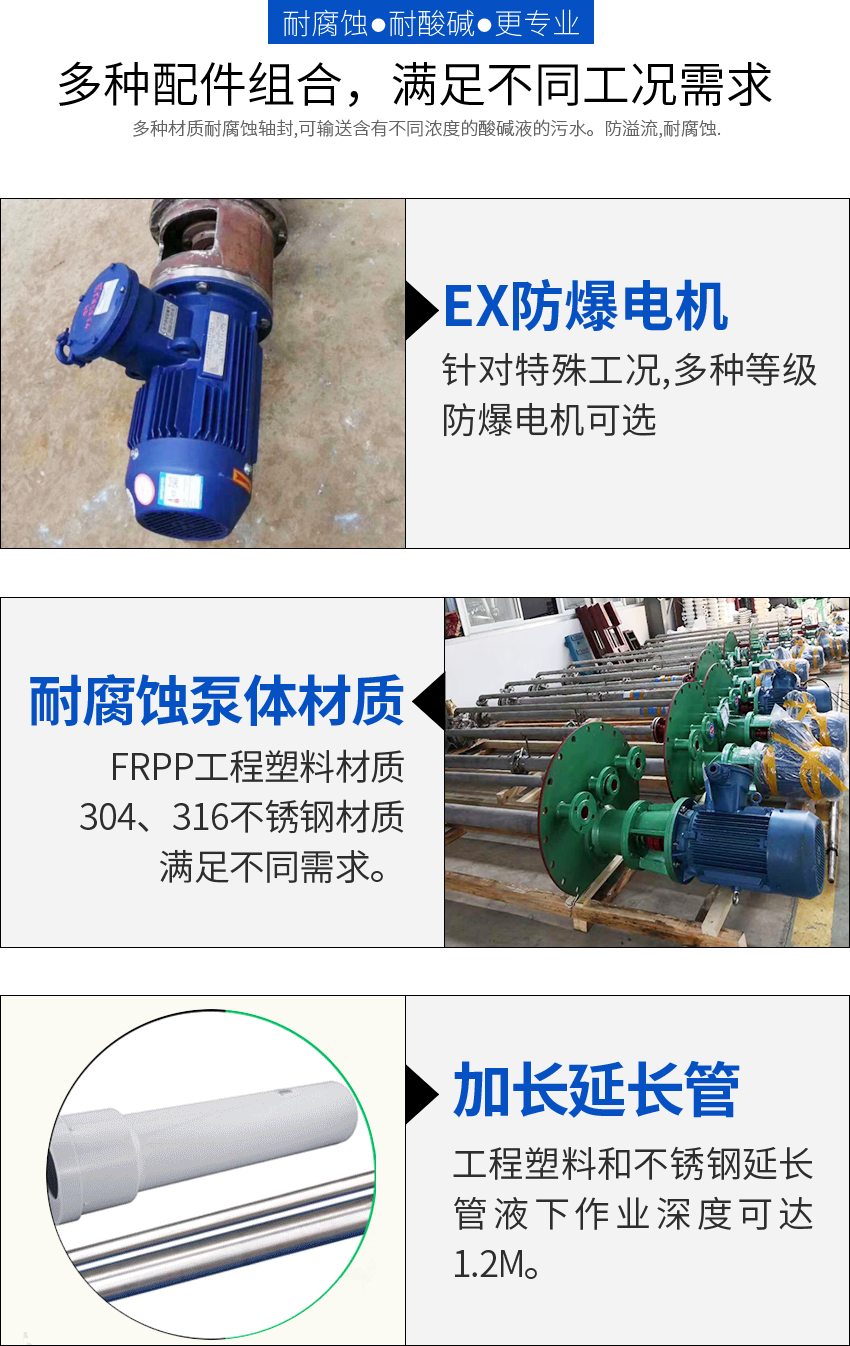

HYF型系列化工液下泵,具有结构合理､选材合理､适用介质广､耐腐蚀性能强､节能效果好､噪声低､运行平稳等特点｡电动机采用符合IEC标准的Y系列电机,也可根据需要配用防爆型电机｡

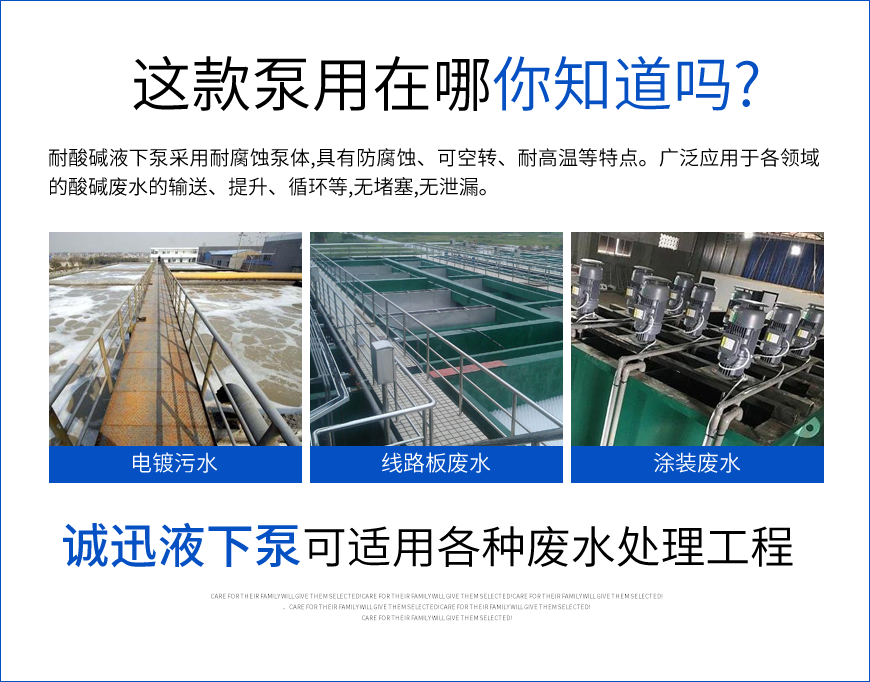

该泵主要输送酸､碱､盐､油品､饮料,有机溶剂等液体,广泛适用于环保､化工､仪表､机电､轻工､石油､冶金､医药､食品､卫生等行业｡

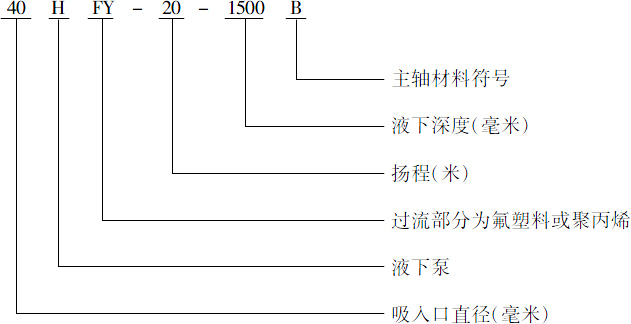

二､型号说明
。
| 型号 | 转数(r/min) | 流量(m3/h) | 扬程(m) | 电机功率（KW） | 出口口径(mm) |
| 25HYF-6 | 2900 | 1.2 | 7 | 0.37～0.55 | 20 |
| 1.5 | 6 | ||||
| 2.5 | 5 | ||||
| 25HYF-16 | 2900 | 1.5 | 17.5 | 0.55～0.75 | 20 |
| 2.5 | 16 | ||||
| 3.5 | 14.5 | ||||
| 32HYF-20 | 2900 | 3.5 | 22 | 1.1～1.5 | 25 |
| 5.5 | 20 | ||||
| 7.5 | 16 | ||||
| 40HYF-20 | 2900 | 5 | 22 | 1.5～2.2 | 32 |
| 7.5 | 20 | ||||
| 10 | 16 | ||||
| 1450 | 2.5 | 5.5 | 0.37～0.55 | ||
| 3.75 | 5 | ||||
| 5 | 4 | ||||
| 50HYF-25 | 2900 | 12 | 28 | 3～4 | 40 |
| 17 | 25 | ||||
| 25 | 16 | ||||
| 1450 | 6 | 7 | 0.75～1.1 | ||
| 8.5 | 5 | ||||
| 12.5 | 4 | ||||
| 50HYF-50 | 2900 | 7.5 | 52 | 5.5～7.5 | 32 |
| 12.5 | 50 | ||||
| 15 | 48 | ||||
| 1450 | 3.75 | 13 | 1.1～1.5 | ||
| 6.3 | 12.5 | ||||
| 7.5 | 12 | ||||
| 65HYF-20 | 2900 | 15 | 21.5 | 4～5.5 | 50 |
| 25 | 20 | ||||
| 30 | 18.5 | ||||
| 1450 | 7.5 | 5.3 | 1.1～1.5 | ||
| 12.5 | 5 | ||||
| 15 | 4.5 | ||||
| 65HYF-32 | 2900 | 15 | 34 | 5.5～7.5 | 50 |
| 25 | 32 | ||||
| 30 | 30 | ||||
| 1450 | 7.5 | 8.5 | 1.5～2.2 | ||
| 12.5 | 8 | ||||
| 15 | 7.5 | ||||
| 65HYF-50 | 2900 | 15 | 53 | 7.5～11 | 40 |
| 25 | 50 | ||||
| 30 | 47.5 | ||||
| 1450 | 7.5 | 13 | 2.2～3 | ||
| 12.5 | 12.5 | ||||
| 15 | 11.5 | ||||
| 80HYF-20 | 2900 | 30 | 23 | 5.5～7.5 | 65 |
| 50 | 20 | ||||
| 60 | 17 | ||||
| 1450 | 15 | 6 | 1.1～1.5 | ||
| 25 | 5 | ||||
| 30 | 4 | ||||
| 80HYF-32 | 2900 | 30 | 36 | 7.5～11 | 65 |
| 50 | 32 | ||||
| 60 | 28 | ||||
| 1450 | 15 | 9 | 1.5～2.2 | ||
| 25 | 8 | ||||
| 30 | 7 | ||||
| 80HYF-50 | 2900 | 30 | 55 | 15～18.5 | 50 |
| 50 | 50 | ||||
| 60 | 45 | ||||
| 1450 | 15 | 13.5 | 3～4 | ||
| 25 | 12.5 | ||||
| 30 | 11 | ||||
| 100HYF-20 | 2900 | 60 | 24 | 11～15 | 80 |
| 100 | 20 | ||||
| 120 | 16 | ||||
| 1450 | 30 | 6 | 2.2～3 | ||
| 50 | 5 | ||||
| 60 | 4 | ||||
| 100HYF-32 | 2900 | 60 | 36 | 15～18.5 | 80 |
| 100 | 32 | ||||
| 120 | 28 | ||||
| 1450 | 30 | 9 | 3～4 | ||
| 50 | 8 | ||||
| 60 | 7 | ||||
| 100HYF-50 | 2900 | 60 | 56 | 18.5～22 | 65 |
| 100 | 50 | ||||
| 120 | 44 | ||||
| 1450 | 30 | 14 | 5.5～7.5 | ||
| 50 | 12.5 | ||||
| 60 | 11 | ||||
| 125HYF-50 | 2900 | 120 | 61 | 37～45 | 100 |
| 200 | 50 | ||||
| 240 | 41 | ||||
| 1450 | 60 | 15 | 7.5～11 | ||
| 100 | 12.5 | ||||
| 120 | 10 | ||||
| 150HYF-20 | 1450 | 120 | 24.5 | 18.5～22 | 125 |
| 200 | 20 | ||||
| 240 | 15 | ||||
| 200HYF-20 | 1450 | 240 | 23 | 37 | 150 |
| 400 | 20 | ||||
| 460 | 18 |
